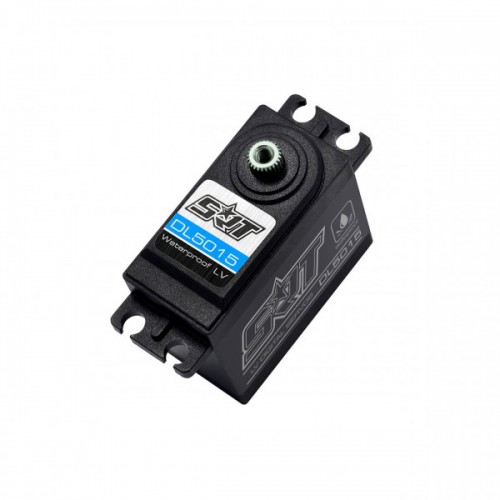

SRT DL5015 Waterproof Standard Size Digital Servo

SRT DL5015 Waterproof Standard Size Digital Servo

€33.90

Free for 1130 points

Quantity

Earn 7 points/€0.21 (Each €5.00 spent = 1 point, 1 point = €0.03 discount)
Your cart will total 7 points that can be converted into a voucher of €0.21.

Secure payments with credit card and PayPal

Worldwide shipments with express courier

Money Back Guarantee

Description

SRT DL5015 Waterproof Standard Size Digital Servo

The latest generation of SRT servos provides you with the performance you need for any scale vehicle\ Air Plane\Boat\Robot application. are standard size servos, feature middle metal case construction for the ultimate performance.

Features:

Ideal for 1/8 & 1/10 on road, GT and 1/8 off road scale applications
Superior Holding Torque
Incredible efficiency and low power consumption
Standard dimension make it perfect for vehicles that can benefit from a high quality servo
CNC Intermediate Machined aluminum case for exceptional cooling
Waterproof
25T output shaft
2 μsec Dead Band
1-Year Limited Warranty

Specifications:

Type:	Digital
Bearing:	Dual
Motor Type:	DC
Gear Type:	Metal
Gear Material:	Titanium / Alu
Control system:	Pulse width control
Working frequence:	1520μs / 330hz
Operating voltage:	dc 4.8-6.0v
Operating temperature range:	-10 to + 60 degree
Operating speed (4.8V):	0.15 sec/60 degrees at no load
Operating speed (6.0V):	0.13 sec/60 degrees at no load
Operating speed (7.4V):
Stall torque (4.8V):	12.0kg.cm (347.2 oz/in)
Stall torque (6.0V):	15.0kg.cm (416.6 oz/in)
Stall torque (7.4V):
Potentiometer drive:	Direct drive
Dimensions:	40.7 x 20.5 x 39.5 mm
Weight:	65.0g
Connector wire length:	jr 300 mm
