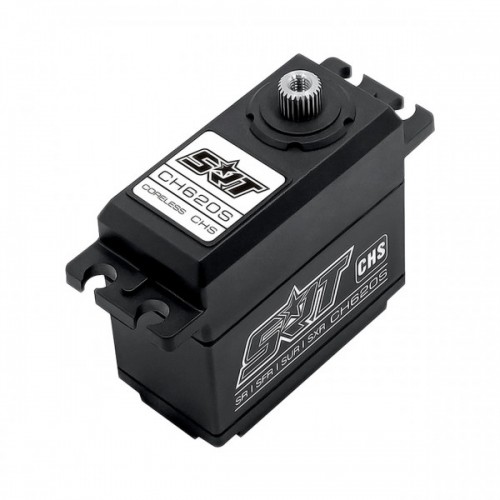

SRT CH620S High Voltage Standard Size Coreless Digital Servo
Earn 12 points/€0.36
(Each €5.00 spent = 1 point, 1 point = €0.03 discount)
SRT CH620S High Voltage Standard Size Coreless Digital Servo
The latest generation of SRT servos provides you with the performance you need for any scale vehicle\ Air Plane\Boat\Robot application. are standard size servos for High-Voltage applications up to 8.4V, feature all metal case construction for the ultimate performance.
| Type: | Digital |
| Bearing: | Dual |
| Motor Type: | Coreless |
| Gear Type: | Metal |
| Gear Material: | Titanium / Alu |
| Control system: | Pulse width control |
| Working frequence: | 1520μs / 330hz |
| Operating voltage: | dc6.0-8.4v |
| Operating temperature range: | -10 to + 60 degree |
| Operating speed (6.0V): | 0.12 sec/60 degrees at no load |
| Operating speed (7.4V): | 0.10 sec/60 degrees at no load |
| Operating speed (8.4V): | 0.09 sec/60 degrees at no load |
| Stall torque (6.0V): | 14.0kg.cm (347.2 oz/in) |
| Stall torque (7.4V): | 18.0kg.cm (416.6 oz/in) |
| Stall torque (8.4V): | 20.0kg.cm (486.1 oz/in) |
| Potentiometer drive: | Direct drive |
| Dimensions: | 41.3 x 20.5 x 38.3 mm |
| Weight: | 69.0g |
| Connector wire length: | jr 300 mm |
