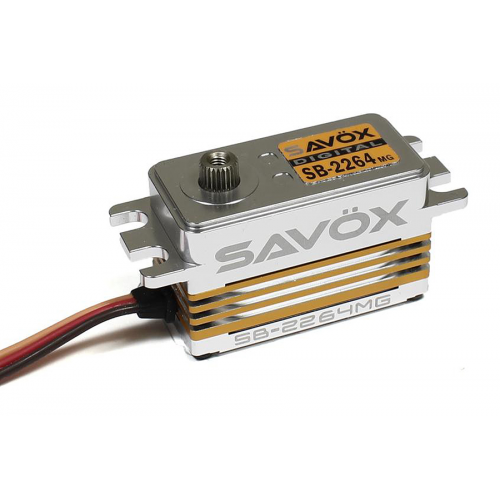

Savox SB-2264MG Low Profile HV Brushless Digital Servo Full Metal
This servos combines leading edge technology with super high 12 bit (4096) resolution and also features a brushless motor/controller unit, and use a 'bullet proof' all steel gear set for unmatched strength that makes them ideal for 1/10 touring car and off road applications that require a high speed servo.
Savox SB-2261MG Servo Features:
Leading edge digital servo technology
High efficiency Brushless motor
Accurate and fast response
Super high resolution
Aluminium all case for improved motor cooling and total strength
Ball beared
Precision Metal gears
Spec Check:
Servo Technology: Digital Low Voltage
Input Voltage (V): 4.8V - 7.4V
Servo Type / Size: Low Profile
Motor Type: Brushless Motor
Gear Material: Metal Gears
Ball Beared: Ball Beared
Servo Case: All Aluminium
Speed 60°/Sec @ 6.0V: 0.076 Sec/60° (7.0V: 0.085 Sec/60°)
Torque kg/cm @ 6.0V: 10.0 Kg/cm (7.0V: 15.0 Kg/cm)
Length: 40.8 mm
Width: 20.2 mm
Height: 25.4 mm
Weight: 57 g
Connector type: JR
Spline size: 25T
