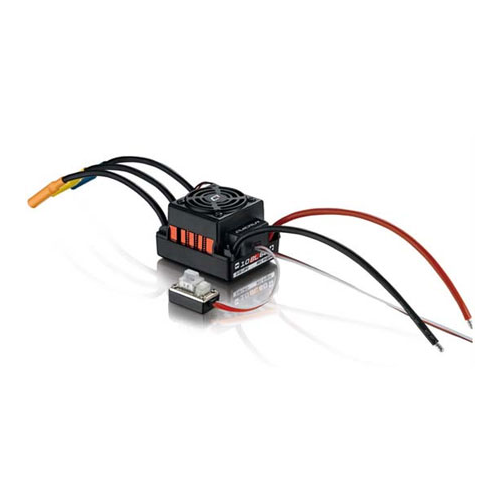

HobbyWing QUICRUN 60A Brushless Sensorless Waterproof ESC
Benefits from the water-proof and dust-proof design, the QuicRun-WP-10BL60 speedo is fit for all weather races.
The speedo owns these outstanding features as listed below. External programming port, easy to connect to the Program Card when setting the ESC. Proportional brake with 4 steps of maximum brake force adjustment and 8 steps of drag brake force adjustment. 9 steps of acceleration (/punch) adjustment from ?soft? to ?Very aggressive? to fit for different kinds of models, tires and tracks. Multiple protections like Low voltage cut-off protection, Over-heat protection, Throttle signal loss protection and Motor lock-up protection to extend the service life. One-button (the ?SET? button on the ESC) to set the ESC, and easy to reset all parameters to the factory default settings. Compatible with the optional device - the portable Digital LED Program Card, especially convenient for outdoor use.
Current - 60A/360A
Input - 4-9 Cells NiMH, or 2-3S Lipo
BEC Output - 6V/2A (Linear Mode)
Resistance - 0.001
Motor Supported - Sensorless Brushless Motor (compatible with sensored motor but
not in sensored operating mode)
Cooling Fan - Gets working voltage from battery directly without regulating,
The stock fan can work with 2S and 3S Lipo
Weight - 90g
Size - 48.5(L)X38(W)X32(H)mm
Motor Limit - For 2S Lipo or 6 cells NiMH
On-road: 3656-size or smaller motor with the KV<6000
Off-road/Buggy/Monster: 3656-size or smaller
motor with the KV<4000
For 3S Lipo or 9 cells NiMH:
On-road: 3656-size or smaller motor with the KV<4000
Off-road/Buggy/Monster: 3656-size or smaller motor with the KV<3000
Car Applicable - 1:10 On-road/Off-road/Buggy/Monster
