Description

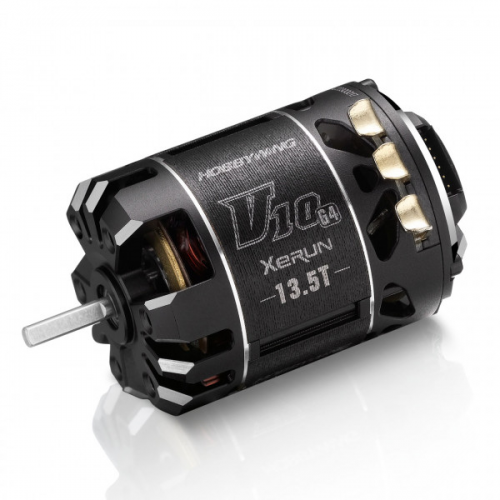

HobbyWing Xerun V10 G4R 13.5 Brushless Motor Sensored

The Xerun V10 G4 motor by Hobbywing ensures outstanding performance on the track. A whopping 5% more power output and 9.8% higher kV than the previous G3R series makes for an excitingly powerful driving experience in any 1/10 stock competition.

The completely redesigned G4 motor manages to optimally dissipate heat development through the exposed stator core. Among other things, the outer diameter and thus the total area was increased by more than a quarter in order to contribute effectively to the cooling of the motor and to be able to quickly dissipate the heat to the outside.

You can also install the motor according to Your own needs. There are, for example, two sensor ports to make the cable routing as space-saving as possible. And if you value personalization even more, You can use the optional weak-magnetic rotor to make the motor ready for Boost Stock instead of Blinky Stock races. Boost Stock stands for even more performance and even less heat development.

Features:

  • 5% more power, 9.8% higher kV and 4% lower internal resistance than the G3R
  • Low resistance, but high efficiency
  • Long life span
  • First-class, linear power delivery
  • Weight and cooling optimized housing
  • High quality processed parts
  • Fine adjustable timing
  • Easily dismantled for maintenance

All in all, this results in a motor that plays at the highest level in terms of performance, durability and perfect power delivery.

Technical Specifications:

Type: Brushless / Sensor
Poles: 2
kV rating: 3950kV
Turns: 13.5T
LiPo cells: 2-3s
Max. power: 322W
Max. current: 70A
No-Load current: 4.5A
Outer diameter: 35.8mm
Length: 51.4mm
Shaft diameter: 3.17mm
Shaft length: 13.9mm
Weight: 149g
Timing adjustable: 30°-60°
Application: 1/10 Stock

Data sheet

HW30401140
0.20 kg
