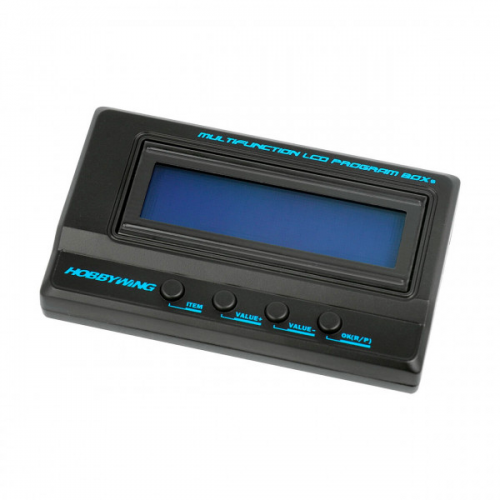

HobbyWing LCD Programm Box G2 for Xerun, Ezrun and Platinum

HobbyWing LCD Programm Box G2 for Xerun, Ezrun and Platinum

The improved LCD programming box by Hobbywing is the ideal addition to program brushless ESCs comfortably and easily, be it on the go or at home on the computer. The set values are shown on the 16x2 field LCD display so that you always know what you are currently setting. With the included USB-C adapter, the box can also serve as a connection between the ESC and the computer, for example to update the firmware.

If you need even more functionality, you can also use the programming box to measure the voltage of individual LiPo cells or entire packs. So three outstanding functions in one handy device.

Note: Please refer to the programming settings of your controller to find out which values can be set.

Technical Specifications:

• Input Voltage DC: 4.5-12.6V
  (If the ESC does not have a built-in BEC, a separate battery must be used)
• Display: 16x2 characters LCD
• Ports: USB-C, ESC, Power
• Compability for battery check: XH, EH, HP/PQ
• Dimensions: 90x51x17mm
• Weight: 65g

This Multifunction LCD Program Box is suited for the following ECSs:

• XeRun car ESCs: Version 2.0, 2.1, 3.0, 3.1 and later
• EZRUN car ESCs: Version 2.0 and later
• PLATINUM helicopter/flight ESC
• Seaking Pro boat ESC
