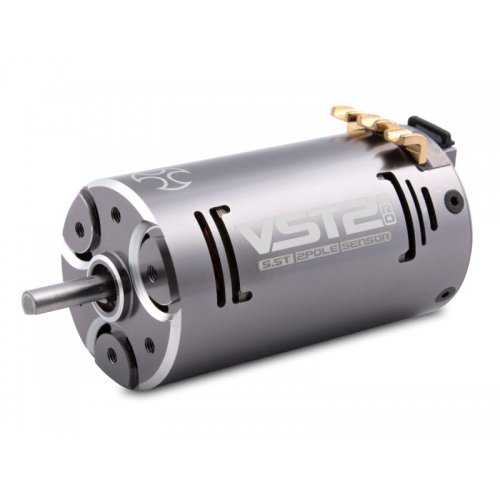

Team Orion Vortex VST2 PRO 550 Outlaw Brushless Motor 4.0T
For Short Course Trucks and other off-road vehicles Team Orion developed all new 550 size motors: the VST2 Pro ! The new design features the convenient dual sensor port system which allows the motor to be installed in your car in the best possible way. The empty port can be used to easily program your ESC through the motor. A protection cap for the second port is included.
The VST2 Pro 550sized motor is equipped with a very robust aluminum case with an improved ventilation system for best cooling at every racing condition.
Available in 4 pole and 2 pole versions we used all our experience from our World Champion winning motors to create this brand new design. We use high quality stator materials and precision balanced rotors to give this power plant best power, efficiency and smoothness.
features
- World champion technology
- 2 or 4 pole sensor motor
- New sensor design improves performance and efficiency
- Dual sensor wire port
- Alloy case with improved ventilation system
- Low resistance solder tabs
- High quality stator materials
- Precision balanced rotor
- Rotor installation tool
Technical specifications
Bearing / Bushing: Ballbearing
Cells: 1-2S
Continuous Current: 120A
Diameter: 35.8mm
Length: 69mm
Shaft Diameter: 5.0mm
Shaft Length: 16mm
Size: 690
Type: Brushless Sensor
Weight: 258g
RPM-V: 5100kV
