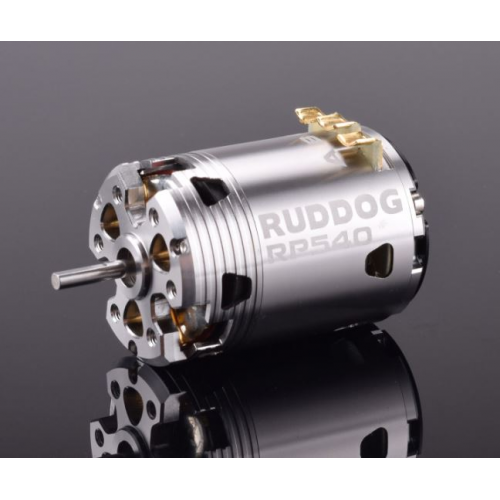

Ruddog RP540 4.5T 540 Sensored Brushless Motor

The RUDDOG RP540 sensored competition brushless motor offers the latest technologies in terms development and production of competition motors. Weighing in at a lightweight 170g the motor is made using highest grade materials including Japan-made steel stator plates and a 99.9% high-temperature pure copper wire. Large venting openings improve cooling and provide constant performance over the entire runtime even under the hottest of conditions. On top of this the silver color can give you the advantage not only on, but also off the track.





Weight: 165-175g depends on turn rating

Voltage: 2S/7.4V

Size: 540 = 36x51.75mm

Shaft diameter: 3.175mm

KV rating: 7620 RPM/V

Power: 490 Watts

Internal Resistance: 0,0042 Ohm

Max. Current: 108A

Rotor: ?12.3*?5

Timing: Adjustable from 20 to 60°

Sensor: Standard Sensor Port / exchangeable

EFRA legal !





- 4.5T RP540 Motor

- 200m Sensor Lead

- Manual in German and English language
