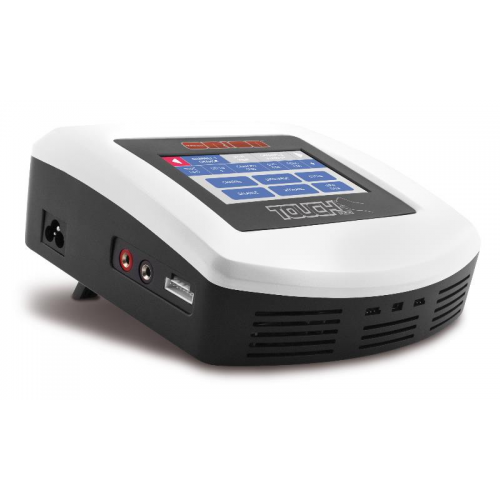

Team Orion Advantage Touch Duo V-Max AC/DC 2x100W Charger
Our range of Advantage Touch chargers has been successful all around the world. The Duo Touch version with dual charge outputs instantly became a bestseller, it has everything that the serious RC hobbyist needs. For 2016 we have updated the Touch Duo by adding a LiPo HV charge mode. LiPo HV batteries, like our LiPo V-Max batteries, require a charge end voltage of 4.35V/cell (vs 4.2V/cell for regular LiPo). The 200W integrated power supply allows charge currents of up to 10A and fast charging of any type of battery. You can simultaneously charge, discharge, store, cycle or balance any combination of LiPo/LiPo HV/LiFe/NiMH/NiCd/Pb batteries. The interface is equipped with a top navigation bar that allows you to easily switch between the two channels and a split view allows you to display simultaneously the data from both channels. As it's the case with the other Advantage Touch chargers, the duo also features advanced setup possibilities, balancing, discharge and storage functions and a graphic engine to display charge and discharge curves. The charger is also equipped with a USB connector that allows the user to install future firmware upgrades.
New LiPo HV Charge Mode
Touch Screen Dual Channel Multi-Chemistry Charger
Large size 4? Color Touch Screen
Integrated 200W AC Power Supply
6 memory slots for charge settings
200W (100W/channel) charge power, 2x10A max
Charges 1-6S LiPo/LiPo HV/LiFe, 1-16 cell NiMH/NiCd and 1-20 cell Pb batteries
Multi language easy to use interface
New Split View Data Display
Wide array of adjustable parameters
Charge, discharge, cycle, storage and balance functions.
Input/output reverse polarity and short circuit protection
Two 4-in-1 Balancing Boards included
Specs:
Input Voltage: 11-18VDC / 100-240VAC
Charging Capability: NiMH/NiCd 1-16 celle, LiPo/LiPo HV/LiFe/LiIon 1-6 celle, Pb 2-20V
Charge Current: 0.1A a 10A (2x 100W)
Discharge Power: 0.1A bis 5A (2x 20W)
Length: 202mm
Width: 190mm
Height: 74mm
Weight: 1340g
