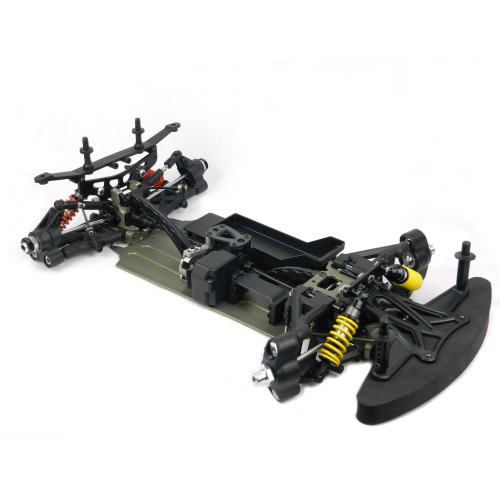

RC Car BMT 801GTX EP PRO 1/8 On/Road
Earn 120 points/€3.60
(Each €5.00 spent = 1 point, 1 point = €0.03 discount)
RC Car BMT 801GTX EP PRO 1/8 On/Road
BMT 801GTX EP PRO, is a competition car for the shaft-driven GT category.
The 801GTX EP PRO is a completely new car compared to the 801 model, the GTX version, mounts the Alu. bulckhead with easy differential access, new damper stay, new antirollbar, and short big bore shock.
Everything has been redesigned for the competition. All the suspensions have been redesigned with geometries suitable for On/Road competition,
this involved the construction of a new chassis, and all the suspension plates.
Chassis:
The chassis is in aluminum 7075 T6, with Hard anodization.
It’s has already the front and rear reinforcements.
All the transmission of the model are light, with alu axle shafts, at the front CVA , the crowns and pinions of the differentials are made by steel, and the whole turns on ball bearings.
The shock absorbers are hydraulic (with oil), they are of the Big Bore type and are completely in aluminum and adjustable by means of a ring nut to vary the spring hardness.
The shock absorber supports are in ergal 7075 from 4mm thick and have various holes for fixing the shock absorbers in order to change the setup.
The suspensions are fully adjustable, with upper triangle, at the front, with adjustable position, and rear tie rod. All angles like camber, convergence, height etc. they are adjustable with pivot ball.
In addition, the front and rear suspensions are equipped with adjustable anti-roll bars.
The whole electronic part is protected by an airtight dustproof box.
Here are some features of this model:
Chassis 3mm ergal
Suspension pins in steel
Electronics in an airtight box
Gear differentials
Short Big Bore shock absorbers
New Front shock absorber support in 4mm ergal
New Rear shock absorber support in 4mm ergal
Chassis reinforcements
Rear and front stabilizer bars
Adjustable steel tie rods
Alu. Diff. Bulckhead with easy access
Technical data:
Scale: 1/8
Length: 460mm
Width: 292/300mm
Height: 120mm
Wheelbase: 320mm
Weight: 3400g
To complete the model car:
Motor and esc
Radio and servo
Batteries
Body and tyres
